SLIDING | CLASSIC LINE

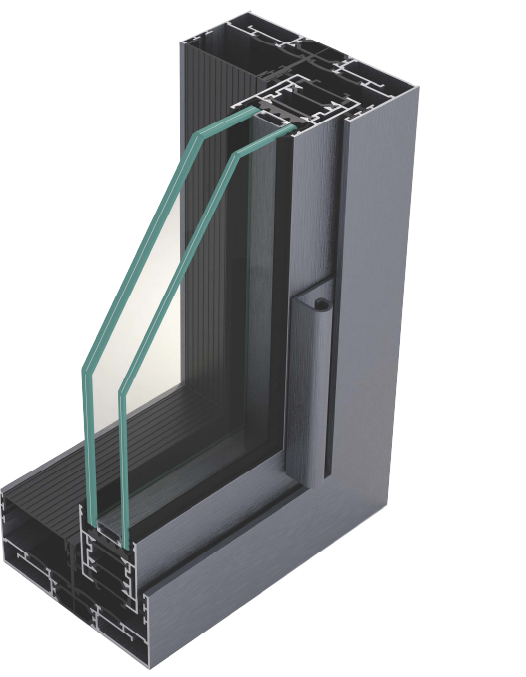

SK 70 TB

New generation thermal insulated sliding system, with high thermal and acoustic performances available in 2 or 3 rails.

KEY SIZES

Frame Depth70.0
Wing Depth43.0
Lateral121.5
Central53/81
Insulating Strip34.0

PERFORMANCE

WATER TIGHTNESS

Low High
1A 0Pa 2A 50Pa 3A 100Pa 4A 150Pa 5A 200Pa 6A 250Pa 7A 300Pa 8A 450Pa 9A 600Pa E1200 >6000Pa

WIND LOAD RESISTANCE

Pressure MAX 1 400Pa 2 800Pa 3 1200Pa 4 1600Pa 5 1600Pa EXXX >2000Pa
AIR PERMEABILITY
1 2 3 4
150Pa 300Pa 600Pa >600Pa
THERMAL TRANSMITTANCE
DOUBLE GLAZINGUw W/m2 K* 2.23
TRIPLE GLAZINGUw W/m2 K**

*Window Type 2 sash 2500 x 2500 mm Glazing: Ug = 1,0 W/m2K, psi = 0,04 W/m K
**Window Type 2 sash 2500 x 2500 mm Glazing: Ug = 0,6 W/m2K, psi = 0,04 W/m K

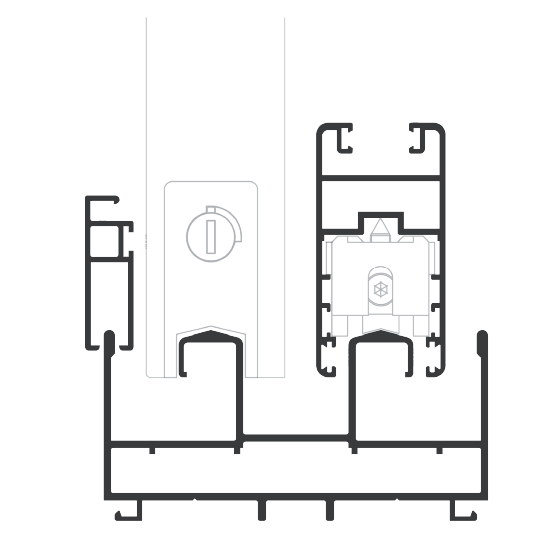

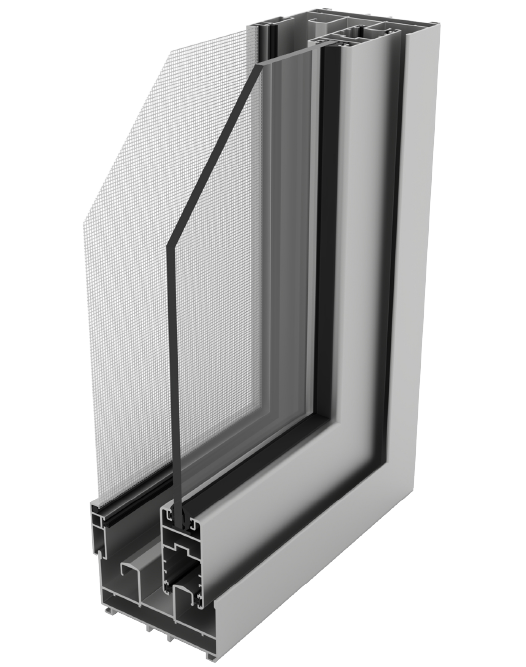

SK 95

Essential and functional sliding system, available in 2 or 3 rails and integrated mosquito net profile upon request.

KEY SIZES

Frame Depth 95.0
Wing Depth 32.0
Lateral 98.5
Central 69.0

PERFORMANCE

WATER TIGHTNESS

Low High
1A 0Pa 2A 50Pa 3A 100Pa 4A 150Pa 5A 200Pa 6A 250Pa 7A 300Pa 8A 450Pa 9A 600Pa E1200 >6000Pa

WIND LOAD RESISTANCE

Pressure MAX 1 400Pa 2 800Pa 3 1200Pa 4 1600Pa 5 1600Pa EXXX >2000Pa
AIR PERMEABILITY
1 2 3 4
150Pa 300Pa 600Pa >600Pa
THERMAL TRANSMITTANCE
DOUBLE GLAZINGUw W/m2 K*
TRIPLE GLAZINGUw W/m2 K**

*Window Type 2 sash 2500 x 2500 mm Glazing: Ug = 1,0 W/m2K, psi = 0,04 W/m K
**Window Type 2 sash 2500 x 2500 mm Glazing: Ug = 0,6 W/m2K, psi = 0,04 W/m K

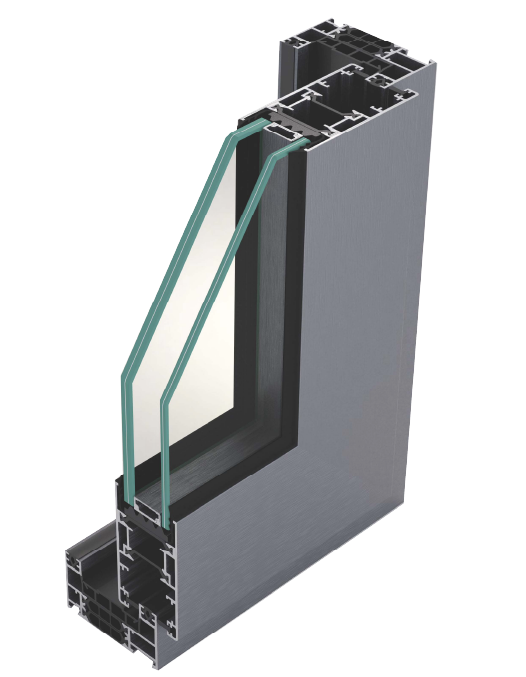

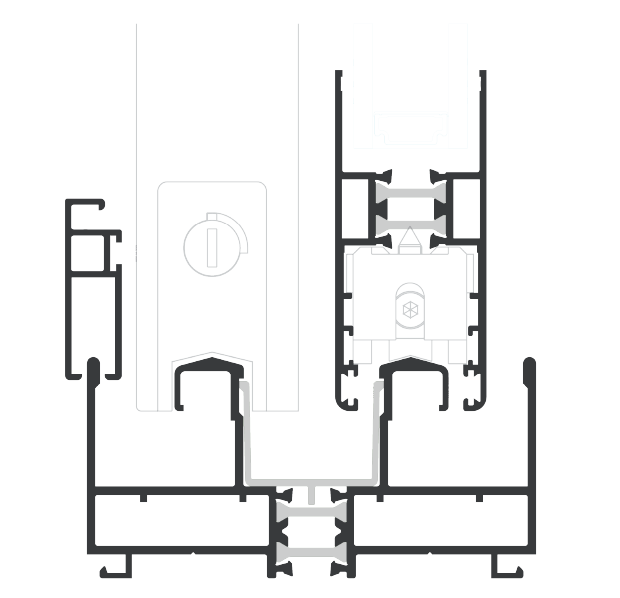

SK 95 TB

Thermal insulated sliding system (thermal break), available in 2 or 3 rails with moving of fix wings and integrated mosquito net profile upon request.

KEY SIZES

Frame Depth95.0
Wing Depth32.0
Lateral98.5
Central78.0
Insulating Strip14.8

PERFORMANCE

WATER TIGHTNESS

Low High
1A 0Pa 2A 50Pa 3A 100Pa 4A 150Pa 5A 200Pa 6A 250Pa 7A 300Pa 8A 450Pa 9A 600Pa E1200 >6000Pa

WIND LOAD RESISTANCE

Pressure MAX 1 400Pa 2 800Pa 3 1200Pa 4 1600Pa 5 1600Pa EXXX >2000Pa
AIR PERMEABILITY
1 2 3 4
150Pa 300Pa 600Pa >600Pa
THERMAL TRANSMITTANCE
DOUBLE GLAZINGUw W/m2 K* 3.15
TRIPLE GLAZINGUw W/m2 K**

*Window Type 2 sash 2500 x 2500 mm Glazing: Ug = 1,0 W/m2K, psi = 0,04 W/m K
**Window Type 2 sash 2500 x 2500 mm Glazing: Ug = 0,6 W/m2K, psi = 0,04 W/m K

SLIDING | EVO LINEOnly available in GCC (Arabic Gulf Area)

SQ 67-90°

New generation thermal insulated sliding system,
with high thermal and acoustic performances.

KEY SIZES

Frame Depth67.0
Wing Depth42.6/39.4
Lateral92.3/93.7
Central33.7
Insulating Strip34/36/39

PERFORMANCE

WATER TIGHTNESS

Low High
1A 0Pa 2A 50Pa 3A 100Pa 4A 150Pa 5A 200Pa 6A 250Pa 7A 300Pa 8A 450Pa 9A 600Pa E1200 >6000Pa

WIND LOAD RESISTANCE

Pressure MAX 1 400Pa 2 800Pa 3 1200Pa 4 1600Pa 5 1600Pa EXXX >2000Pa
AIR PERMEABILITY
1 2 3 4
150Pa 300Pa 600Pa >600Pa
THERMAL TRANSMITTANCE
DOUBLE GLAZINGUw W/m2 K* 1.47
TRIPLE GLAZINGUw W/m2 K**

*Window Type 2 sash 2500 x 2500 mm Glazing: Ug = 1,0 W/m2K, psi = 0,04 W/m K
**Window Type 2 sash 2500 x 2500 mm Glazing: Ug = 0,6 W/m2K, psi = 0,04 W/m K

SQ 67-45°

New generation thermal insulated sliding system,
with high thermal and acoustic performances.

KEY SIZES

Frame Depth67.0
Wing Depth42.0
Lateral114.3
Central78.9
Insulating Strip30/34/36

PERFORMANCE

WATER TIGHTNESS

Low High
1A 0Pa 2A 50Pa 3A 100Pa 4A 150Pa 5A 200Pa 6A 250Pa 7A 300Pa 8A 450Pa 9A 600Pa E1200 >6000Pa

WIND LOAD RESISTANCE

Pressure MAX 1 400Pa 2 800Pa 3 1200Pa 4 1600Pa 5 1600Pa EXXX >2000Pa
AIR PERMEABILITY
1 2 3 4
150Pa 300Pa 600Pa >600Pa
THERMAL TRANSMITTANCE
DOUBLE GLAZINGUw W/m2 K*
TRIPLE GLAZINGUw W/m2 K**

*Window Type 2 sash 2500 x 2500 mm Glazing: Ug = 1,0 W/m2K, psi = 0,04 W/m K
**Window Type 2 sash 2500 x 2500 mm Glazing: Ug = 0,6 W/m2K, psi = 0,04 W/m K

SQ 90

New generation thermal insulated sliding system,
with high thermal and acoustic performances.

KEY SIZES

Frame Depth92.5
Wing Depth58.0
Lateral120.3
Central79.4
Insulating Strip30/36

PERFORMANCE

WATER TIGHTNESS

Low High
1A 0Pa 2A 50Pa 3A 100Pa 4A 150Pa 5A 200Pa 6A 250Pa 7A 300Pa 8A 450Pa 9A 600Pa E1200 >6000Pa

WIND LOAD RESISTANCE

Pressure MAX 1 400Pa 2 800Pa 3 1200Pa 4 1600Pa 5 1600Pa EXXX >2000Pa
AIR PERMEABILITY
1 2 3 4
150Pa 300Pa 600Pa >600Pa
THERMAL TRANSMITTANCE
DOUBLE GLAZINGUw W/m2 K* 1.88
TRIPLE GLAZINGUw W/m2 K** 1.56

*Window Type 2 sash 2500 x 2500 mm Glazing: Ug = 1,0 W/m2K, psi = 0,04 W/m K
**Window Type 2 sash 2500 x 2500 mm Glazing: Ug = 0,6 W/m2K, psi = 0,04 W/m K

SQ 115 Lean

Minimal thermal insulated sliding system, with high thermal and acoustic performances.

KEY SIZES

Frame Depth116.0
Wing Depth42.0
Lateral81.0
Central42.9
Insulating Strip30/34

PERFORMANCE

WATER TIGHTNESS

Low High
1A 0Pa 2A 50Pa 3A 100Pa 4A 150Pa 5A 200Pa 6A 250Pa 7A 300Pa 8A 450Pa 9A 600Pa E1200 >6000Pa

WIND LOAD RESISTANCE

Pressure MAX 1 400Pa 2 800Pa 3 1200Pa 4 1600Pa 5 1600Pa EXXX >2000Pa
AIR PERMEABILITY
1 2 3 4
150Pa 300Pa 600Pa >600Pa
THERMAL TRANSMITTANCE
DOUBLE GLAZINGUw W/m2 K* 2.09
TRIPLE GLAZINGUw W/m2 K**

*Window Type 2 sash 2500 x 2500 mm Glazing: Ug = 1,0 W/m2K, psi = 0,04 W/m K
**Window Type 2 sash 2500 x 2500 mm Glazing: Ug = 0,6 W/m2K, psi = 0,04 W/m K

SLIDING | HP LINE

SQ 114 HP

New generation thermal insulated sliding system, with high thermal and acoustic performances available in 2 or 3 rails.

KEY SIZES

Frame Depth85
Wing Depth43.9/46.5
Lateral89/92.3
Central34.3
Insulating Strip31.8/34/39

PERFORMANCE

WATER TIGHTNESS

Low High
1A 0Pa 2A 50Pa 3A 100Pa 4A 150Pa 5A 200Pa 6A 250Pa 7A 300Pa 8A 450Pa 9A 600Pa E1200 >6000Pa

WIND LOAD RESISTANCE

Pressure MAX 1 400Pa 2 800Pa 3 1200Pa 4 1600Pa 5 1600Pa EXXX >2000Pa
AIR PERMEABILITY
1 2 3 4
150Pa 300Pa 600Pa >600Pa
THERMAL TRANSMITTANCE
DOUBLE GLAZINGUw W/m2 K* 1.36
TRIPLE GLAZINGUw W/m2 K** 1.10

*Window Type 2 sash 2500 x 2500 mm Glazing: Ug = 1,0 W/m2K, psi = 0,04 W/m K
**Window Type 2 sash 2500 x 2500 mm Glazing: Ug = 0,6 W/m2K, psi = 0,04 W/m K

SQ 85 HP

Minimal thermal insulated sliding system, with high thermal and acoustic performances.

KEY SIZES

Frame Depth114
Wing Depth43.9/46.5
Lateral89/92.3
Central34.3
Insulating Strip31.8/34/39

PERFORMANCE

WATER TIGHTNESS

Low High
1A 0Pa 2A 50Pa 3A 100Pa 4A 150Pa 5A 200Pa 6A 250Pa 7A 300Pa 8A 450Pa 9A 600Pa E1200 >6000Pa

WIND LOAD RESISTANCE

Pressure MAX 1 400Pa 2 800Pa 3 1200Pa 4 1600Pa 5 1600Pa EXXX >2000Pa
AIR PERMEABILITY
1 2 3 4
150Pa 300Pa 600Pa >600Pa
THERMAL TRANSMITTANCE
DOUBLE GLAZINGUw W/m2 K* 1.40
TRIPLE GLAZINGUw W/m2 K** 1.14

*Window Type 2 sash 2500 x 2500 mm Glazing: Ug = 1,0 W/m2K, psi = 0,04 W/m K
**Window Type 2 sash 2500 x 2500 mm Glazing: Ug = 0,6 W/m2K, psi = 0,04 W/m K
